Angle Heads and Live Tools

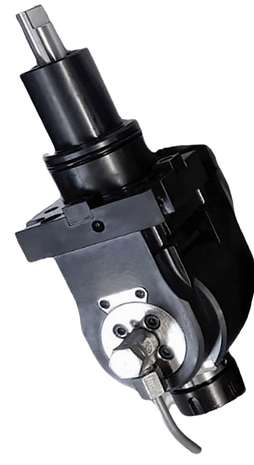

Angle Heads

Our angle heads streamline machining operations, eliminating the need for frequent tool repositioning and leading to significant cost reductions, process rationalization, and enhanced production flexibility. Our angle heads are available in various European and international shank variants, with customization options to suit specific machine requirements. They support drilling, reaming, countersinking, threading, and milling operations, including inaccessible workpiece sections.

We offer a wide range of special designs for complex machining tasks, along with single, dual, or multi-spindle variants. Our angle heads provide high torque transmission and can accommodate various tool fittings, including collet chucks and our modular mi quick-change tool system. Additionally, they can be equipped with internal coolant supply and are available with fixed angles for precise machining.

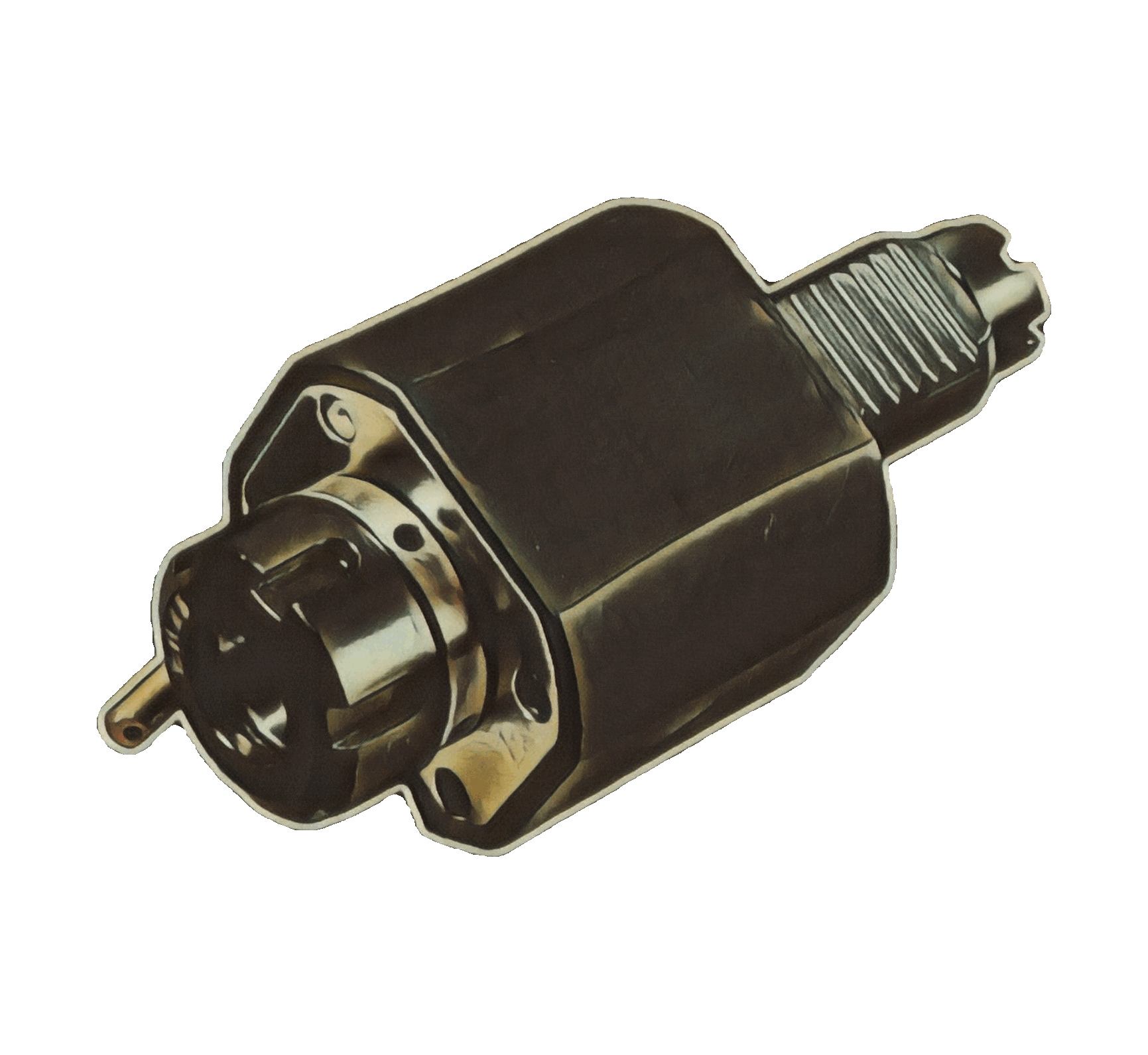

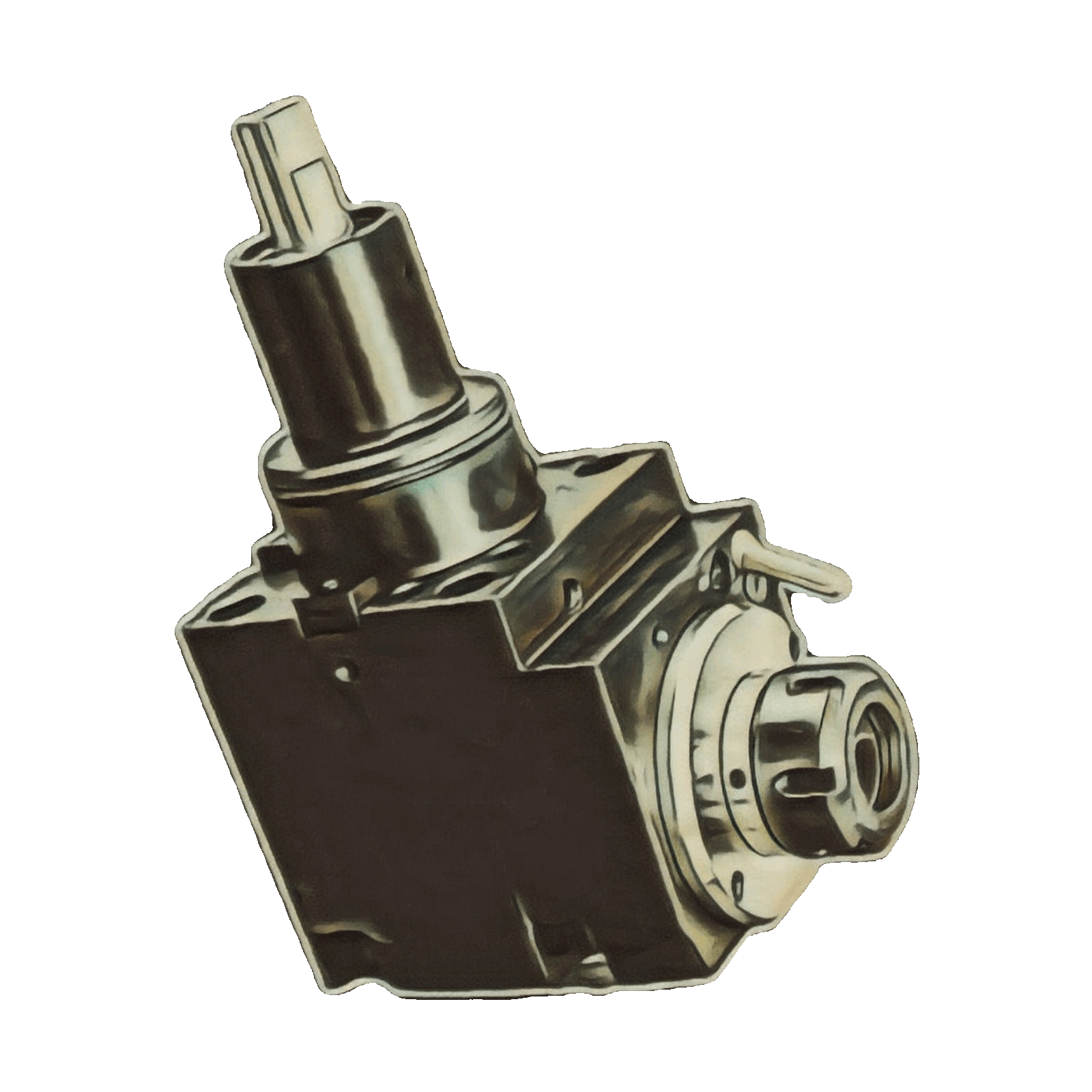

Live Tools

For all turnmills, Precision toolholders are absolutely vital in the metal cutting industry, especially when it comes to achieving high precision and efficiency in manufacturing. Our products are recognized for their technological superiority and ability to enhance productivity and tool life. Being used worldwide speaks volumes about the quality and reliability of our tooling systems.

We offer BMT and VDI adaptions for different types of turnmill machines and a variety of output holding options indicates a versatility that caters to diverse machining needs.

Our emphasis on achieving higher productivity and extending tool life aligns well with the demands of industries where efficiency and precision are paramount.

BMT Tools

High Quality, Productive and Modular.

BMT 45 Adaption:

We offer a comprehensive selection of both live and static tool holders compatible with BMT 45 adaptation. These holders are available in straight and angular configurations, with output shank options including ER25 as standard, along with both internal and external coolant features. Customization for shank options is available upon request. Our tool holders cater to various machine types equipped with BMT 45, including Doosan Lynx, Hardinge, SMEC, EMCO Hyperturn, Hanwha, Hwacheaon, Hyundai Wia, Jyoti TMC, LMW, and more.

BMT 55 Adaption:

Our range extends to BMT 55 adaptation, offering live and static tool holders in straight, angular, and variable angle configurations. Output options include ER25, ER32, and 32/40 side lock shank holding as standard, with both internal and external coolant capabilities. Customization for shank options is also available upon request. These holders are compatible with machine types such as Doosan Lynx/PUMA, Biglia, Hardinge, Hwacheaon, Hanwha, Hyundai Wia, SMEC, Jyoti CNC, LMW, Victor, and more.

BMT 65 Adaption:

BMT 44 Adaption:

Our lineup for BMT 65 adaptation features live and static tool holders in straight, angular, and variable angle designs, including double output holders. Output options comprise ER25, ER32, and 32/40 side lock shank holding as standard, with both internal and external coolant functionalities. Customization for shank options is available upon request. These holders are compatible with machine types like Doosan Lynx/PUMA, Haas, Chevalier, Hardinge, Hwacheaon, Hyundai Wia, Hanwha, SMEC, Jyoti CNC, LMW, Leedwell, Focus, Victor, and more.

For Nakamura WT100, Wy100, Super NTMX, and Muratec MT100 machines, we provide live and static tool holders with BMT 44 adaptation. Available in straight and angular versions, output options include ER25 as standard, with customization options available upon request.

BMT 55 and BMT 65 for Nakamura:

The BMT 55 Adaption is specifically tailored for Nakamura AS-200 NTJ, NTM3, SC-150 M, SC-200 M, SC-250 M, Super NTJ, TW-10, TW-20 (16 ST), WT-150, WT-20-II M/MY, WT-250, WTS-150, WTW-150, and WY-250 machines, our tool holders with BMT 55 adaptation come in straight and angular versions. Output options include ER25 and ER32 as standard, with customization available upon request. The BMT 65 Adaptation is designed for Nakamura SC-300 M, Super NTX, TW-20 (12 ST), and WT-300 machines, our BMT 65 adapted tool holders are available in straight and angular versions, with ER32 output as standard and customization options available.

BMT 60 Okuma :

Catering to Okuma LB2000 EX M, LB2500 EX M, LB3000 EX M, and LB4000 EX M machines, our BMT 60 adapted tool holders are offered in straight and angular versions. Output options include ER32 and ER40 as standard, with customization available upon request.

BMT 60 Mori Seiki :

Tailored for Mori Seiki NL-1500, NL-2000, NL-2500, NL-3000, NLX-1500, NLX-2000, NLX-2500, NLX-3000, NLX-000, NT-3250, NT-4200, NT-4250, NT-4300, NT-5400, NZL-2500, and NZX-2500 machines, our BMT 60 adapted tool holders are available in straight, angular, and variable angle versions. Output options include ER32 and ER40, along with ER32 double output as standard, with customization available upon request.

The EnGenius Advantage :

Pre-set Tool Holders:

Our BMT tool holders are preset in-house, allowing for immediate use in the machine without additional adjustments.

Adapted Bearings:

The bearings in our tool holders are meticulously adapted to withstand the specific stresses encountered during machining operations, ensuring longevity and performance.

Stringent Quality Testing:

Our tools undergo rigorous quality testing to meet the highest standards. Each tool is delivered with a certificate, guaranteeing its quality and reliability for your machining needs.

VDI Tools

Precise, Versatile and Dependable.

Sauter DIN 5482

According to DIN 5482 standards, VDI shank tools compatible with machines such as Angelini, Colchester, Contur, DOOSAN, Gildemeister/DMG MORI, Graziano, Hardinge, Hessapp, Heyligenstaedt, Kern, Magdeburger, Monforts, Saeilo, Sauter, Schuster, Traub, TRENS, Victor, Voest, Weiler, WFL, and WIA (KIA) are available. These tools support 30, 40, and 50 shanks and come with ER16, ER25, ER32, and ER40 outputs as standard. Additionally, they offer gear ratios of 1:1, 2:1, and 1:2. Various types of heads including straight, angular, variable angle, straight offset, and angular offset are also available.

Duplomatic DIN 1809

VDI shank tools suitable for machines from various manufacturers, including Accuway, Angelini, Biglia, Cazeneuve, Chevalier, CHIAH CHYUN, CHING HUNG, Cincinnati, Daewoo, EMCO, Fadal, Fair Friend, Focus CNC, Hwacheon, Jinn Fa, Jyoti, Leadwell, Magdeburger, Romi, Schaublin, YEONG CHIN, Alex-Tech, BATLIBOI, Hardinge, HURCO, Kovosvit MAS, SOMAB, Taksan, TOPPER, and Hyundai, are available. These tools support 30 and 40 shanks and come with ER16, ER25, ER32, and ER40 outputs as standard. Gear ratios of 1:1, 2:1, and 1:2 are offered, along with various head types including straight, angular, variable angle, straight offset, and angular offset.

Haas Turret

Tools with VDI 40 shanks suitable for Haas Machine models including SL-20 (DISC), SL-30 (DISC), ST-10/20/30Y, ST-20/30, DS-30SS/SSY-Hybrid, VB24, SL-20 Hybrid turret (DISC), SL-30 Hybrid turret (DISC), SL-40 (DISC), ST-20/30 Hybrid turret (DISC), ST-20SS/SSY-Hybrid VB24, ST-30SS/SSY-Hybrid VB24, ST-40, TL-15 Hybrid turret (DISC), TL-25 Hybrid turret (DISC), SL-40 Hybrid turret (DISC), and ST-40 Hybrid turret (DISC) are available. These tools offer ER25, ER32, and Side lock connections in sizes 20, 25, 32, and 40 as standard. They are also equipped with gear ratios of 1:1, 2:1, and 1:2, and various head types including straight, angular, variable angle, straight offset, and angular offset.

Sauter DIN 5480

VDI shank tools compatible with machines from a variety of manufacturers including AKIRA SEIKI, Angelini, Colchester, Duplomatic, EMCO, Gildemeister/DMG MORI, Gital, Graziano, Hardinge, HURCO, Kovosvit MAS, KUEN JENG, Leadwell, Magdeburger Monforts, Mori Seiki, NCT, Saeilo, Scherer, Feinbau, Schuster, TRENS, Victor, Weiler, DOOSAN, Boehringer, Fair Friend, FMS, Fortune, Hessapp KIA, NILES, Romi, Shandong Precision, Viper, WFL, WIA (KIA), SOMAB, Traub, and Pittler, are available. These tools support 30, 40, and 50 shanks and are equipped with ER16, ER25, ER32, and ER40 outputs as standard. Gear ratios of 1:1, 2:1, and 1:2 are also offered. Various types of heads including straight, angular, variable angle, straight offset, and angular offset are provided.

Baruffaldi / TOEM

VDI shank tools compatible with machines such as Ecoca, Edel, Johnford, Spinner, Traub, Hyundai, WIA (KIA), Accuway, CMZ, TOPPER, and others are available. These tools support 30 and 40 shanks and feature ER16, ER25, ER32, and ER40 outputs as standard. Additionally, they offer gear ratios of 1:1, 2:1, and 1:2. Various head types including straight, angular, variable angle, straight offset, and angular offset are also offered.

Okuma VDI Turret

Tools with VDI 40 shanks suitable for various machine models including Genos L200/E-M, MY - V12 M-turret (DISC), LB 10-M (DISC), LB 10-MW (DISC), LB 200-M (DISC), LB 200-MW (DISC), LB 200-MY (DISC), ES L6 II-M (DISC), ES L8 II-M (DISC), LB4000 (DISC), LB/LU 400-M (DISC), ES L10 II M (DISC), LB/LU 300 M (DISC), LB/LU 25-M (DISC), LVT 400-M (DISC), 2SP-250H, LB2000 EX M, LB2500 EX M, LB3000 EX M, LB4000 EX M, LT 10-M (STAR), LT 200-M (STAR), LT 300-M (STAR), LB/LU 400-M (STAR), LT 25-M (STAR), LB 35 M (DISC), LU 35II M (DISC) are available. These tools come with ER25, ER32, and Side lock connections in sizes 20, 25, 32, and 40 as standard. They are also equipped with gear ratios of 1:1, 2:1, and 1:2, and offer various head types including straight, angular, variable angle, straight offset, and angular offset.

The EnGenius Advantage:

Versatility

VDI offers various coupling variants adaptable to different turret types, enhancing flexibility in tooling options.

Enhanced Positioning Accuracy:

VDI provides higher positioning accuracy with alignment aids tailored to specific machine tool manufacturers, ensuring precise machining results.

Optimal Performance:

VDI employs spindle bearings for high-speed applications, ensuring stability and efficiency, while taper roller bearings are utilized for handling high force loads, maximizing performance and durability.
